Product Description

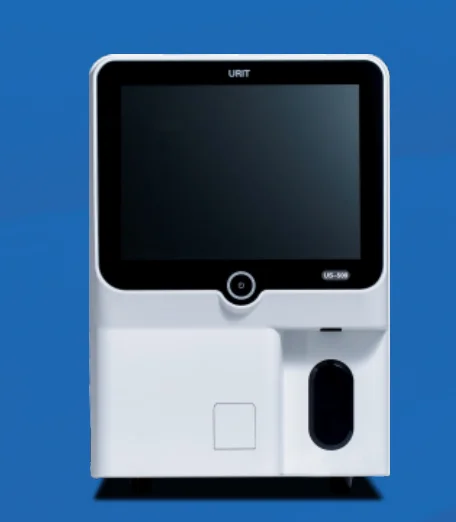

The US-500 is the world's first semi-automatic AI-Libre urinalysis analyzer featuring a compact two-in-one design that uses CNN and deep learning technology. It enables automation of microscope with raw big pictures, making it the ideal choice for small and medium size laboratories.
AI-Libre Urinalysis Analyzer
- World First semi-automatic AI-Libre Urinalysis Analyzer
- 60 T/H for dry chemistry test
- 30 T/H for sediment analysis
- 25 T/H for both
- Compact, two in one design
- AI technology (CNN, deep learning)
- Automation of microscope with raw big picture
- Ideal choice for small and medium size laboratory
Product Specification
| SPECIFICATIONS | |
| Principle | |
| Chemistry: | Dual wavelengths reflectance photometry |
| Sediment: | Al recognition technology |
| Automated microscope technology | |
| Digital imaging technology | |
| Conductivity: | Electrical impedance method |
| Parameters | |
| Chemistry strip parameters: | ■ 10G: LEU, KET, NIT, URO, BIL, PRO, GLU, SG, BLD, pH |
| ■ 11G: LEU, KET, NIT, URO, BIL, PRO, GLU, SG, BLD, pH, VitC | |
| ■ 14G: LEU, KET, NIT, URO, BIL, PRO, GLU, SG, BLD, pH, VitC, MA, CRE, CA | |
| System parameters: | ACR (14G}, PCR (14G) |
| Sediment parameters: | Automatic recognize 21 items: RBC, G1, Ghost, WBC, WBCC, SQEP, TREP, REP, |
| HYA, GRAN, WAXY, CELL, CAOX, URIC, STRUVITE, AMOR, OTCRY, BACT, FUNGUS, | |
| MUGS and SPRM | |
| More items can be classified manually | |
| RBC phase: R-RATE, MCV, MCV-CV | |
| Physical parameters: | Conductivity, Osmolality, COLOR (Manual input), TURBIDITY (Manual input) |
| Throughput | Chemistry+ Sediment: 25T/H I Chemistry: 60T/H I Sediment: 30T/H |
| Sample Volume | 0.6mL |
| Wavelengths | 470nm, 550nm, 620nm, 720nm |
| Sample | Urine |
| Strip | 10G, 11G, 14G |
| Reagent | Detergent A, Detergent C, QC and Calibrator |
| Raw big picture | 288 pictures for each sample |
| Camera Pixels | 1.3 Million Pixels |
| Lens | 40X |
| Report Unit | Chemistry: Plus, ENG, SI, CONV |
| Sediment: /μI, /HPF, /LPF, SQ | |
| Conductivity: mS/cm | |
| Osmolality: mOsm/kg | |
| Voice Prompt | Yes |
| Chemistry + Sediment + Physical parameters + RBC phase + Raw big picture | |
| Interface | Net port, USB, VGA, HDMI, PS2, COM port |
| Results Storage | ≥100,000 |
| Weight | 18.5kg |
| Dimension | 465mm x 270mm x 405mm (L*W*H) |
